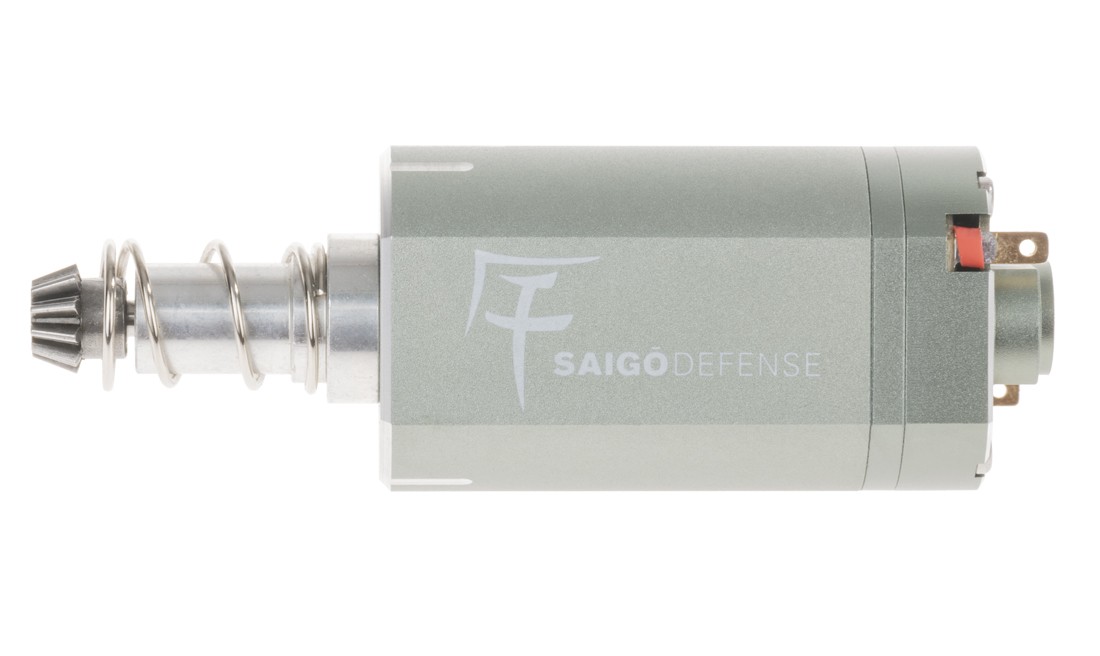

Product Features
• 32-bit MCU
• With continuous speed regulation
• Sensorless brushless
• Overheating and overcurrent protection
• Full CNC casing
• High-temperature N45SH magnets
• High-performance Kawasaki silicon steel sheet
• 180 A MOSFET
Specifications
• Diameter: 29.5 mm
• Height: 25 mm
• Length: 88 mm
• Maximum power: 450 W
• Shaft diameter: 3.175 mm
• Maximum rotation speed: 28,000 RPM
• Maximum current: 45 A
• Starting torque: 75 mNm
• Weight: 95 g
• Startup response time: 9 ms
• KV: 2520
• Rotation speed adjustment range: 60-100%

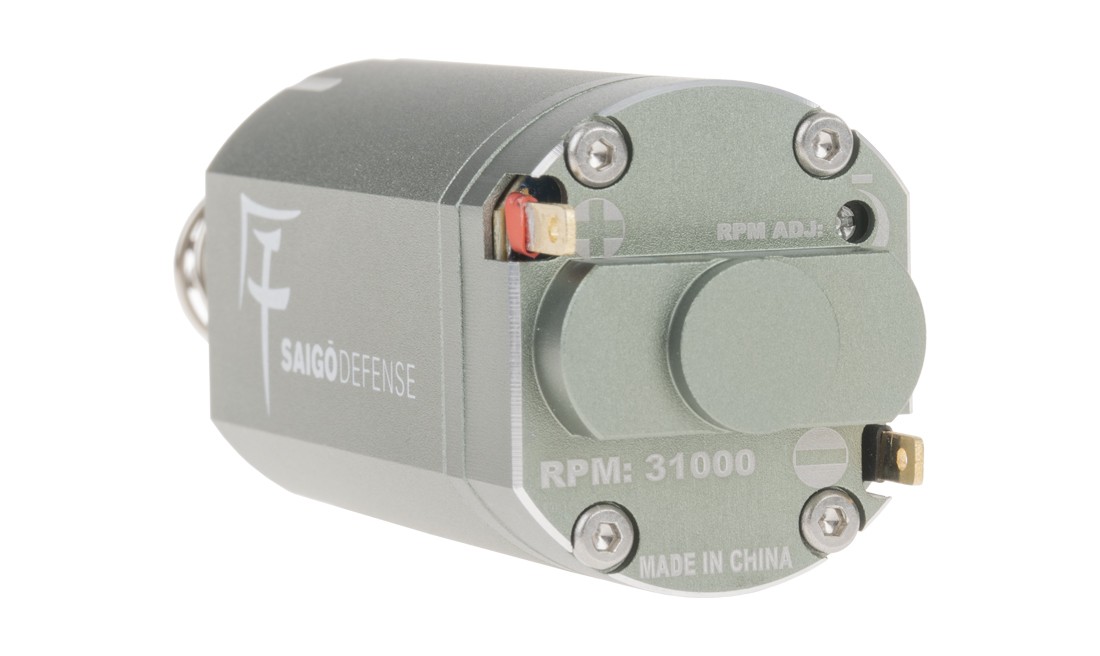

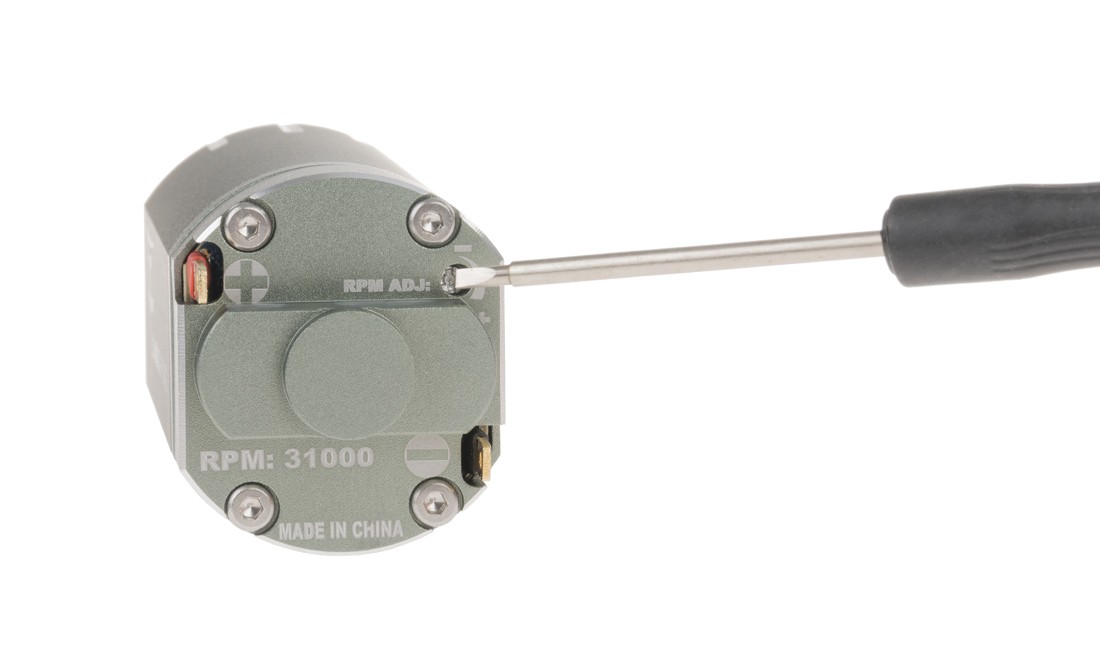

This motor is configured as a continuous speed control drive board, with a speed regulation range of 60% to 100% continuous adjustment.
When the rotation speed is reduced, the power also decreases, so when the load is heavy, the gearbox gear may not drive correctly at the lowest speed. It is recommended to use the highest speed setting for the best performance.
